IP 800W LED BSWF
Beam + Spot + Wash + Profile 4 in 1
LED Source: 800W LED
Beam angle: 5～45°
CMY + CTO
8 colors + 6 gobos + 7 gobos
Prism：8-facet prism
Weight: 30kg
LIGHT SOURCE?
800W LED
Lifespan: over 20,000 hours
POWER SUPPLY
Voltage: AC 100~240V 50/60Hz
Power: 930W
COLOR
Color: One 8-color wheel + blank, with bidirectional rotation rainbow effect;
CMY infinite color mixing + CTO color temperature adjust (6000K-2800K)
GOBO
Static Gobo: 6 metal gobos + animation + blank, gobo with shaking effect
Rotating Gobo: 7 interchangeable gobos + blank; with the effect of positioning and shaking
EFFECT

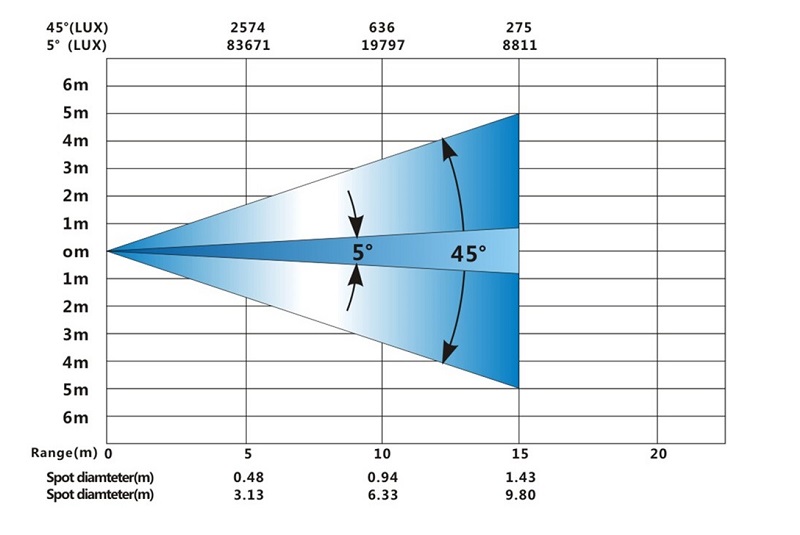

Zoom: electronic linear zoom 5°-45°, distance from 2m to infinity;
Framing system: 4 blades that move separately, 90°?rotation of the entire system
Iris: 5%-100% linear adjustment
Prism: 8-facet prism, clockwise and counter-clockwise
Frost: An independent frost
Dimmer & Strobe: 0-100% linear electronic dimmer, fast electronic strobe
CONTROL & PROGRAMMING
Display: LCD display screen, support both Chinese and English
DMX Channels: 39CH / 34CH
DMX Signal:?USITT DMX 512, 3-pin input & output
Control: Support RDM addressing;
Intelligent temperature control to ensure LED lifespan
MOVEMENT
Pan:?540°?16 Bit
Tilt:?245°?16 Bit
Automatically error correction and reset system
SIZE & WEIGHT
Size: 412L x 330W x 719H(mm)
Net weight: 31.00kgs
IP Rating
lIP65
Color Wheel:?
Fixed Gobo Wheel:?
Rotate Gobo Wheel:?
