Beam + Spot + Wash + Profile 4 in 1
LED Source: 1000W LED
Beam angle: 5～45°
CMY + CTO
8 colors + 6 gobos + 7 gobos
Prism：8-facet prism
Weight: 30kg
Power supply:?
lAC 100 ~ 240 V 50/60 Hz
Input power:
l1150W
Light source:
l1000w LED Light Source
lAverage Life Span: more than 20,000 hours
lColor Temperature: 6000K

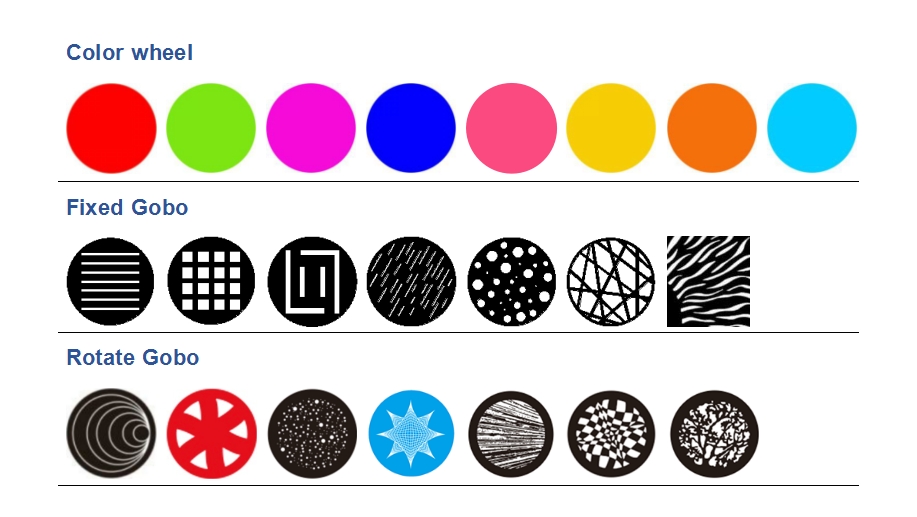

Color system:?
l1 color wheel with 8 colors+blank?
lCMY Color Mixing
lColor Temperature: 6000K - 2800K
lCRI: over 90
Gobo System:
l1 Static gobo wheel with 6 metal gobos + animation + blank; Gobo with shaking effect;?
l1 Rotate gob wheel with 7 interchangeable glass gobo + white circle;?
lGobo with shaking and positioning effect.
Effect:?

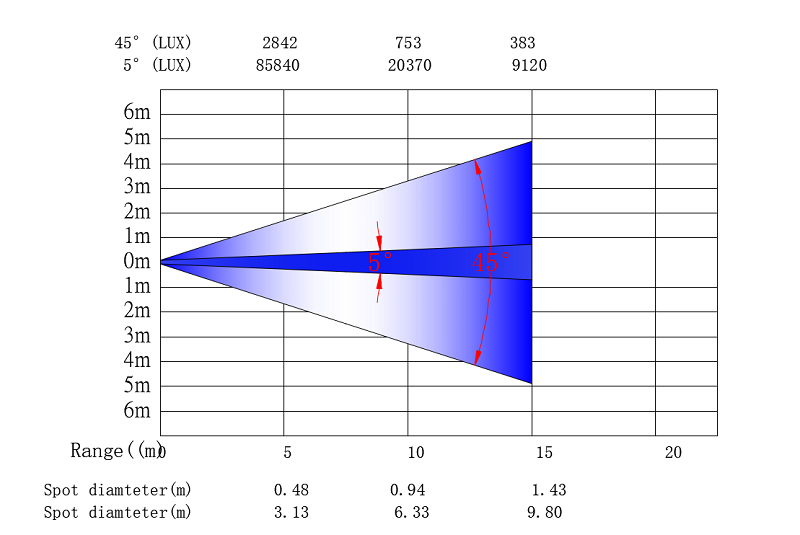

lZoom: electrinic linear zoom 5°-45°, distance from 2m to infinite
lFraming system: 4 blades that move separately, 90° rotation of the entire system
lIris: 5%-100% linear adjustment
lPrism: 8-facet prism, clockwise and counter-clockwise
lFrost: An independent frost
lDimmer & Strobe: 0-100% linear electronic dimmer, fast electronic strobe
Control & Programming:
lDMX Channels: 39 / 34
lDMX Signal:?USITT DMX 512, 3pin XLR input & output
lPan: 540°?16 Bit
lTilt:?245°?16 Bit
lDimmer: 16 Bit
lSupport RDM addressing
lFan speed: intelligent fan speed control
lAutomatically error correction and reset system
Fixture Body:
lHandles on two sides for facilitate transport
lPan/Tilt lock for save transportation and maintenance
lLCD display, support Chinese & English
lIntegrated folding light clamp
Size, Weight & IP:
lSize: 412 x 330 x 836mm
lWeight: 30kg
lWaterproof: IP65
