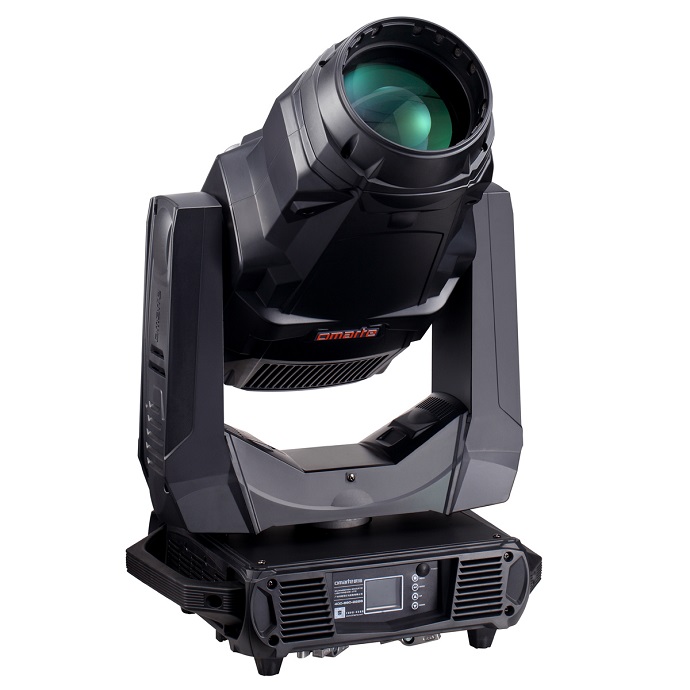

700W LED BSWF
Beams, Spot, Wash, Framing
Source:?700W LED
Zoom：5 ~ 45°
Color wheel: 8 + 1 / CMY + CTO
Fixed gobo: 6 + Animation + 1
Rotation gobo: 7 + 1
Prism: 8-facet Prism
Power Supply:
AC 100~240V 50/60Hz
?
Input Power:
850W
Light Source:?
High power 700W led
LED life expectancy: over 20,000 hours
?
Color:

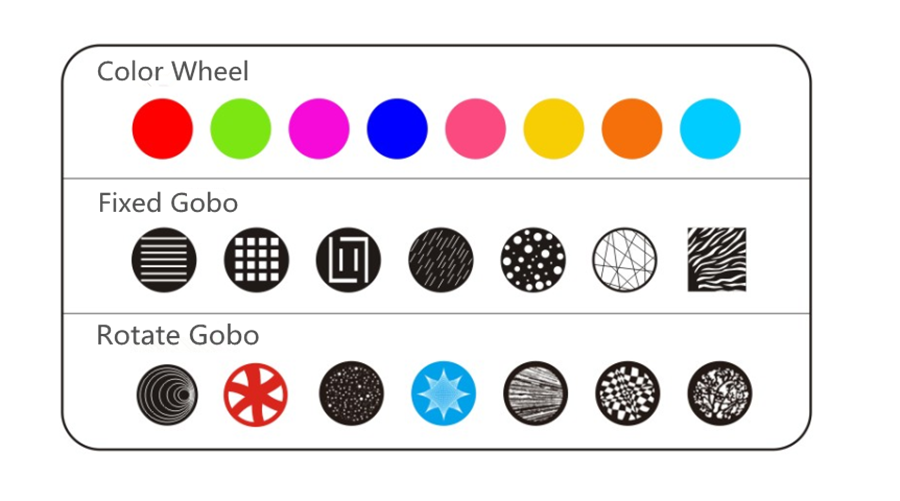

Color: One color wheel with 8colors + blank, with bidirectional rotation rainbow effect;
CMY infinite color mixing
CTO color temperature adjust (6800K-2800K)
Effect:
Static Gobo: 6 metal gobos + animation gobo + blank, gobo with shaking effect
Rotating Gobo: 7 interchangeable gobos + blank; gobo with flowing and shaking effect

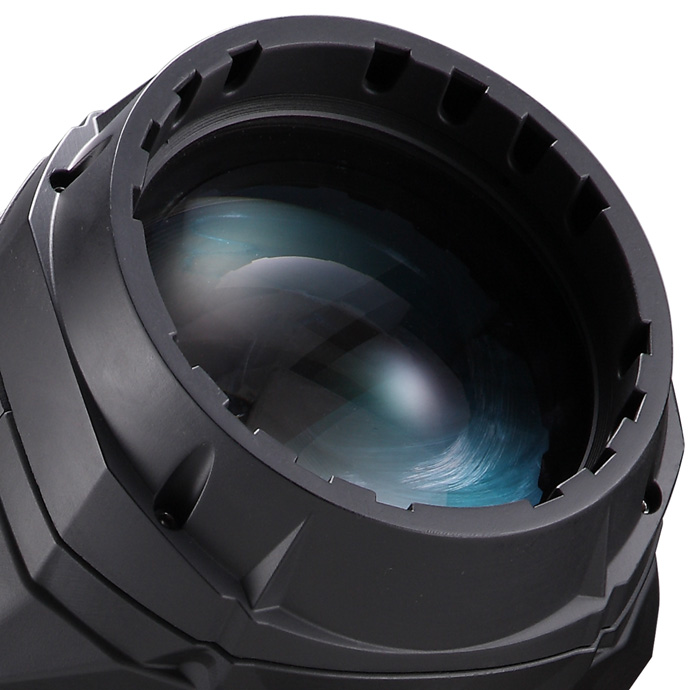

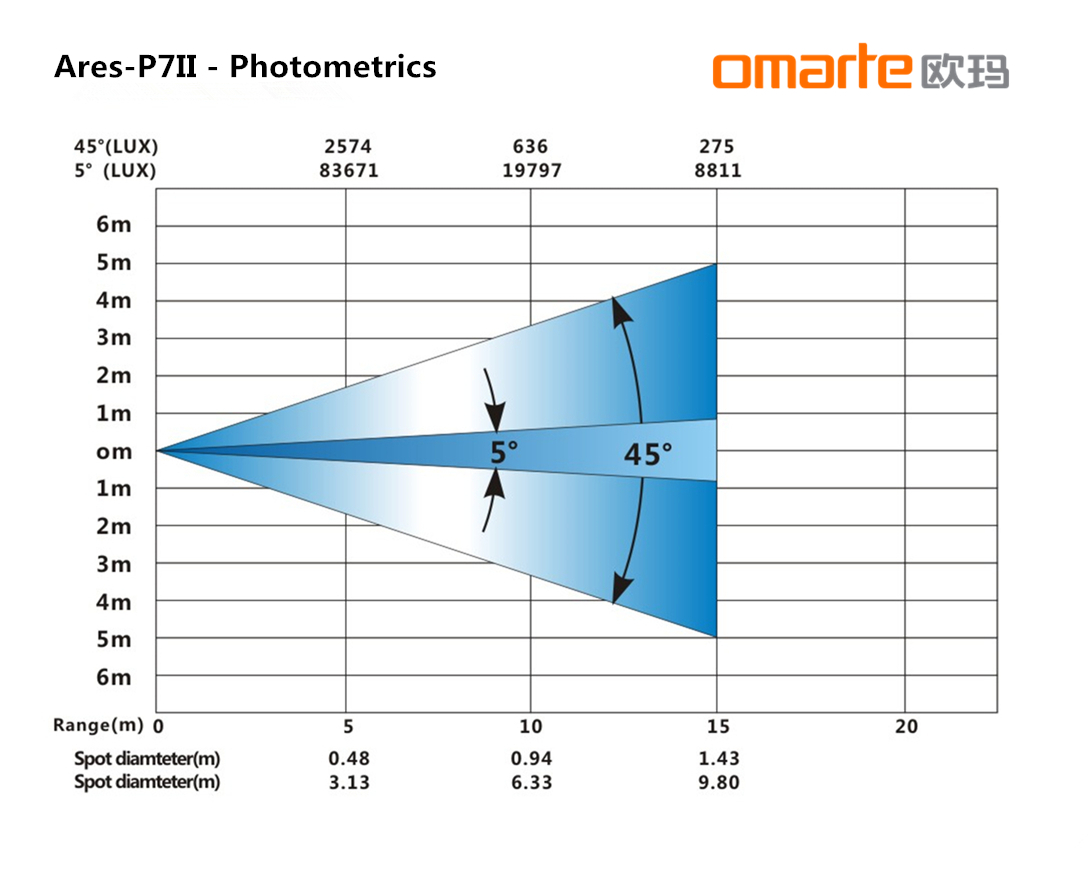

Zoom: electronic linear zoom 5°-45°, distance from 2m to infinite
Framing system: 4 blades that move separately, 90°?rotation of the entire system
Iris: 5%-100% linear adjustment
Prism: 8-facet prism, clockwise and counter-clockwise
Frost: An independent frost
Dimmer & Strobe: 0-100% linear electronic dimmer, fast electronic strobe
Control & Programming:
DMX Channels: 39 / 34
DMX Signal: USITT DMX 512
Support RDM addressing
Pan: 540°?16 Bit
Tilt: 245°?16 Bit
?
Fixture Body:

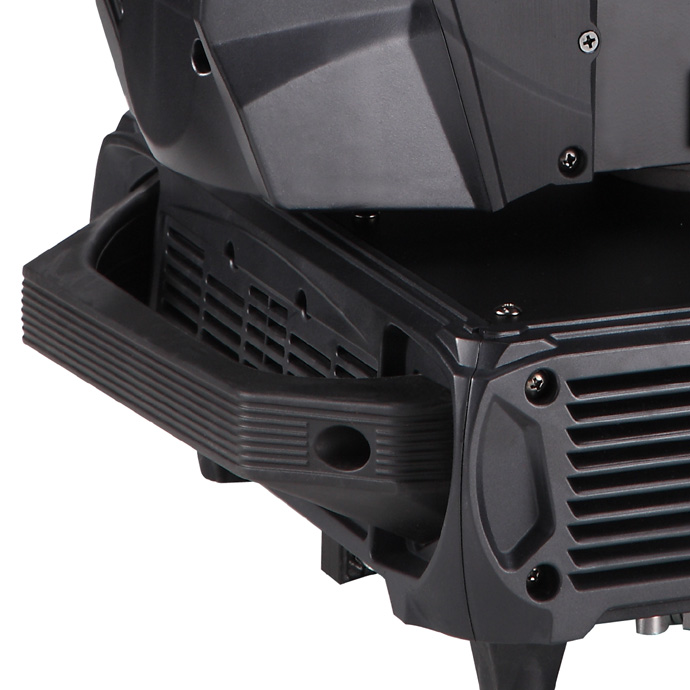

Handles on two sides for facilitate transport
Pan/Tilt lock for save transportation and maintenance
LCD display, support Chinese & English

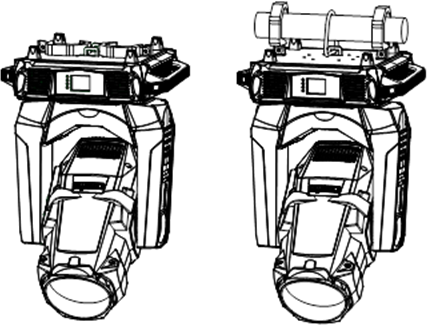

Integrated folding light clamp
Electronics:
Under the condition of non-controller operation, if the fixture is out of position caused by accident, light can automatically return to the original position.
Fan speed: intelligent fan speed control
Size
412 x 330 x 719mm
Weight
29kg
